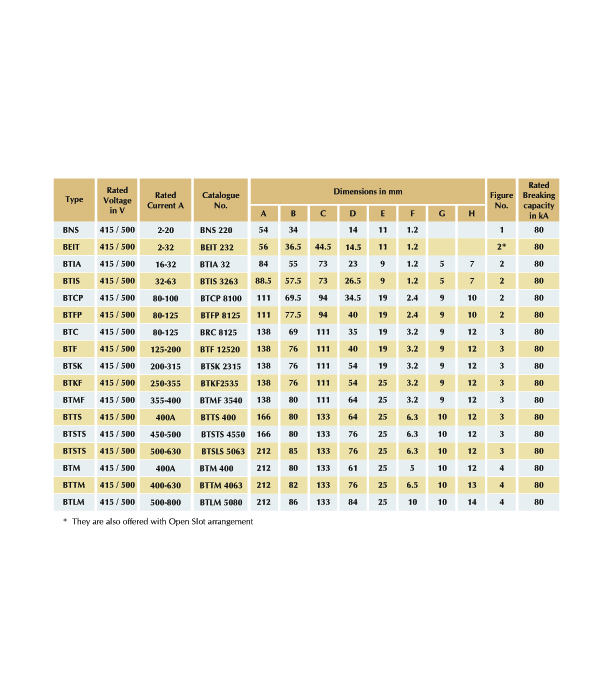

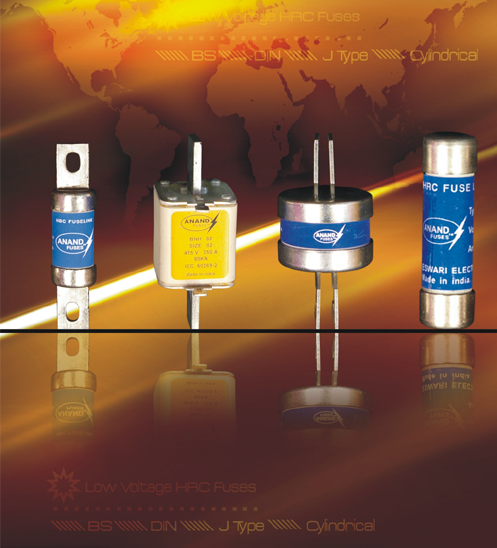

BS Series

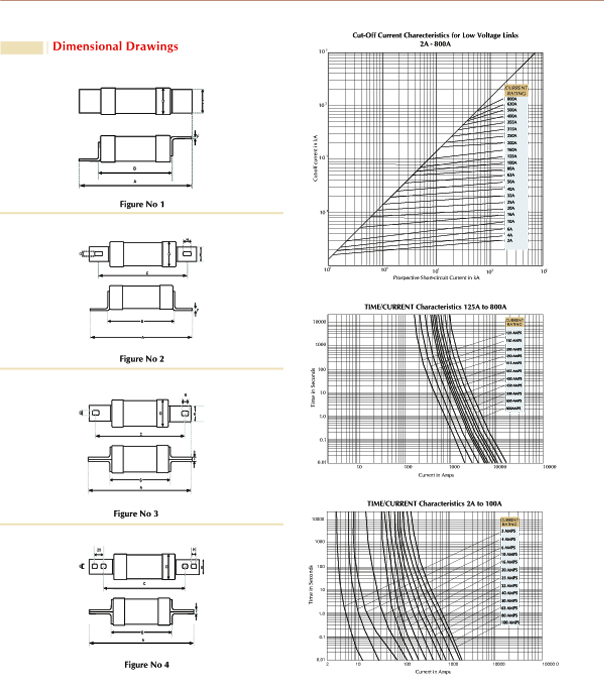

ESWARI make BS type High Breaking Capacity (HBC)fuse links are Extensively used for protection of low voltage circuits.The fuse links areavailable in ratings from 2A to 800 A both in 415V and 500VAC for a breaking capacity of up to 80kA.

All fuse links comply with Standards such as IEC60269, IS 13703 and BS 88..

Applications

Fault current limitation.

Distribution/cable protection.

Equipment/switchgear protection.

Motor/starter protection.

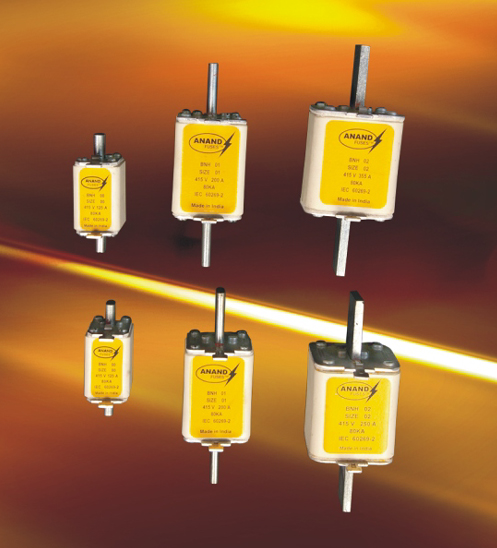

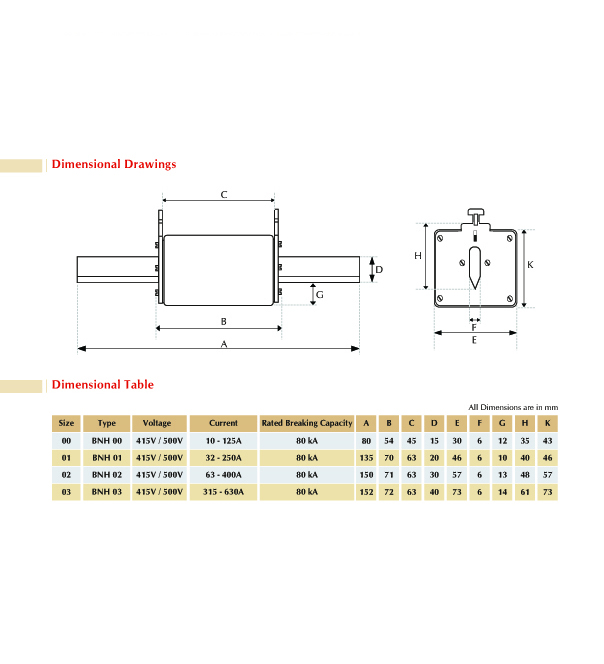

DIN/NH Series

ESWARI Make NH Fuse-links with top center indicator are available in a large variety of voltage ratings, body sizes and operating classes.

Sizes-000,00,0,1,2,3 and 4

Voltage ratings-415/500VAC

Ampere ratings-10A -630A

Operation class-gG-General Purpose

Standards-:IEC60269-1-2,IS13703

Applications

Cable and Line protection.

For general application.

Motor circuit short circuit protection.

General Purpose Transformer Protection.

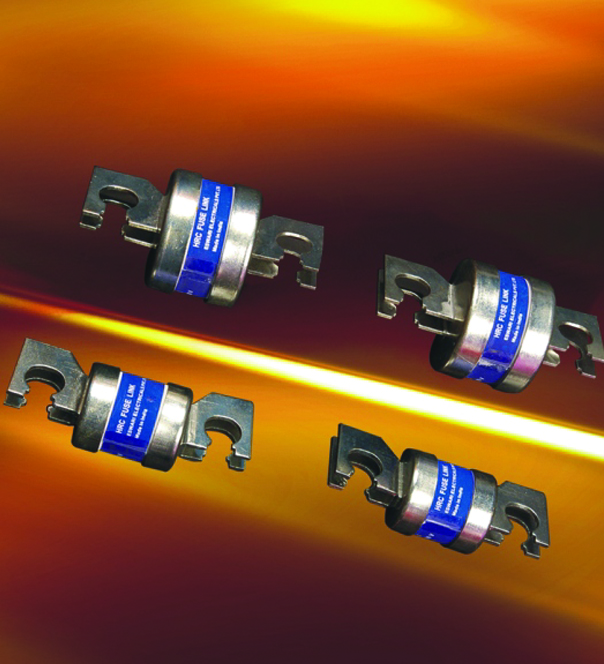

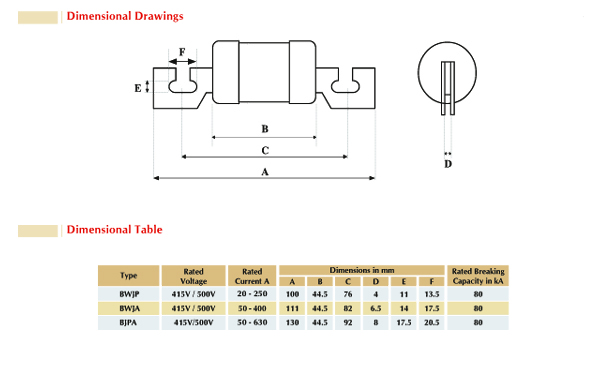

J Series

The J type fuse links are extensively used in the protection of Power Distribution Circuits and most commonly used in the feeder pillars.The fuse links are available in ratings from 2A to 630A both in 415V and 500 VAC.

All fuse links comply with the requirement of BS 88 Part 5 and they are rated for a breaking capacity up to 80kA.

Applications

Electricity supply distribution networks

Distribution boards,Feeder pillars and Link boxes

Pole mounted cut-outs and heavy duty service feeders

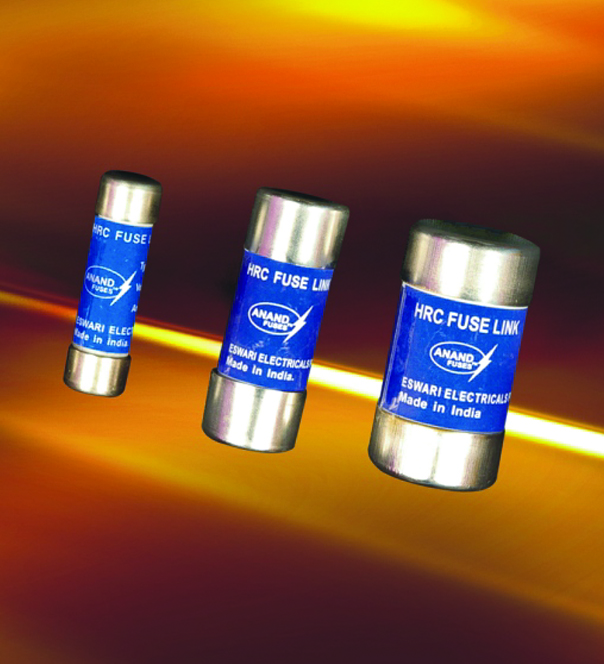

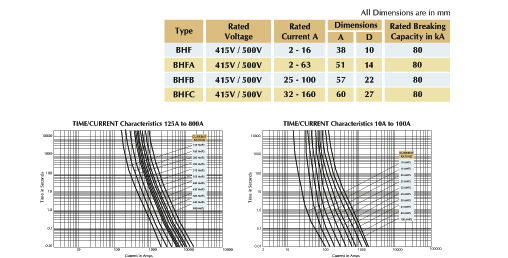

Cylindrical Series

The BHF Series Cylindrical fuse links comply with IEC 60269, BS 1361 and IS 13703 Standards.The rating of the fuse links ranges from 2A to 160A at 415V and 500V AC/DC for a Breaking Capacity up to 80kA.

Applications

Off-load isolation

Domestic service installations

Commercial and Industrial Applications
